Camera Link Frame Grabbers for Embedded PCI Express Buses

Category：EPIX
Visits： 94 Clicked
Date：2025-11-28 15:48:06
Download：

Details

FRAME GRABBER		FOR USE WITH CAMERA	BUS	MAX. DATA WIDTH	FEATURES

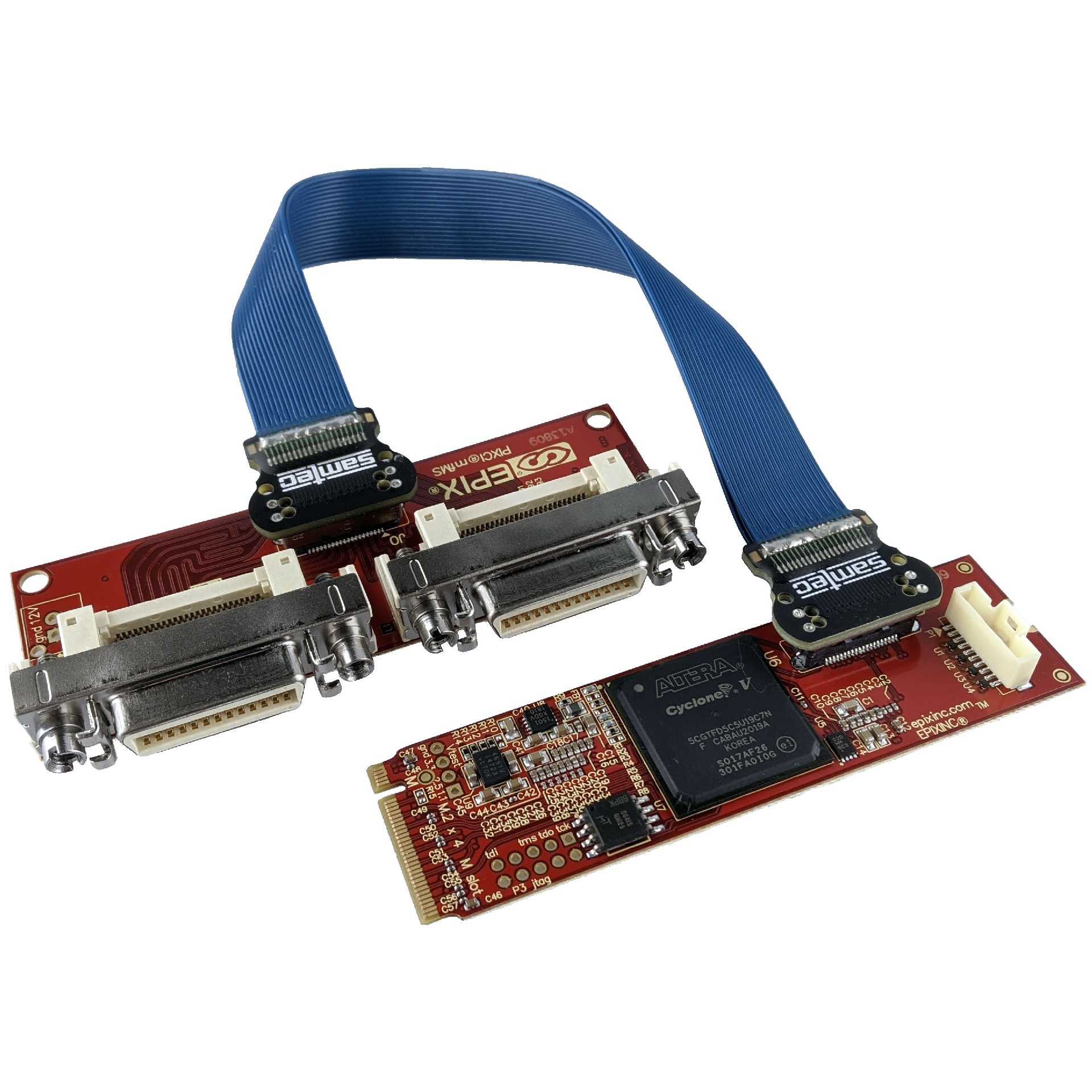

	PIXCI® mf2280	Base / Medium / Full Configuration	M.2 Slot M 2280	80 bits	Embedded, Full Camera Link
	PIXCI® mf2280+	Base / Medium / Full Configuration	M.2 Slot M 2280	80 bits	Embedded, Full Camera Link with Dedicated Receivers

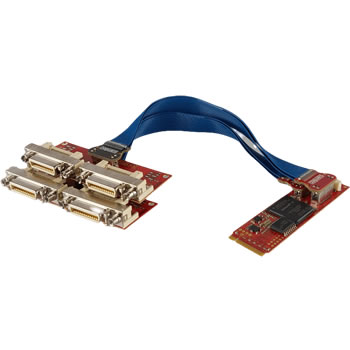

	PIXCI® mf2280d	Base / Medium / Full Configuration	M.2 Slot M 2280	80 bits	Embedded, Dual Camera Link

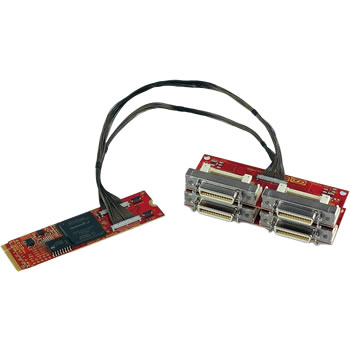

	PIXCI® mf2280dl	Base / Medium / Full Configuration	M.2 Slot M 2280	80 bits	Embedded, Low Profile Dual Camera Link

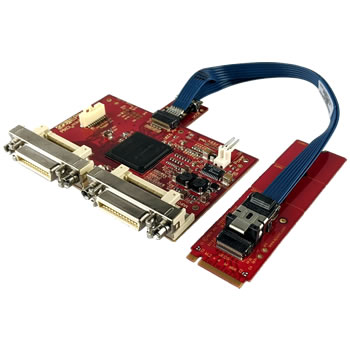

	PIXCI® miniH2x4F	Base / Medium / Full Configuration	M.2 Slot M	80 bits	Embedded, Full Camera Link

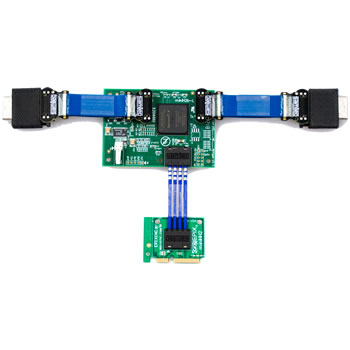

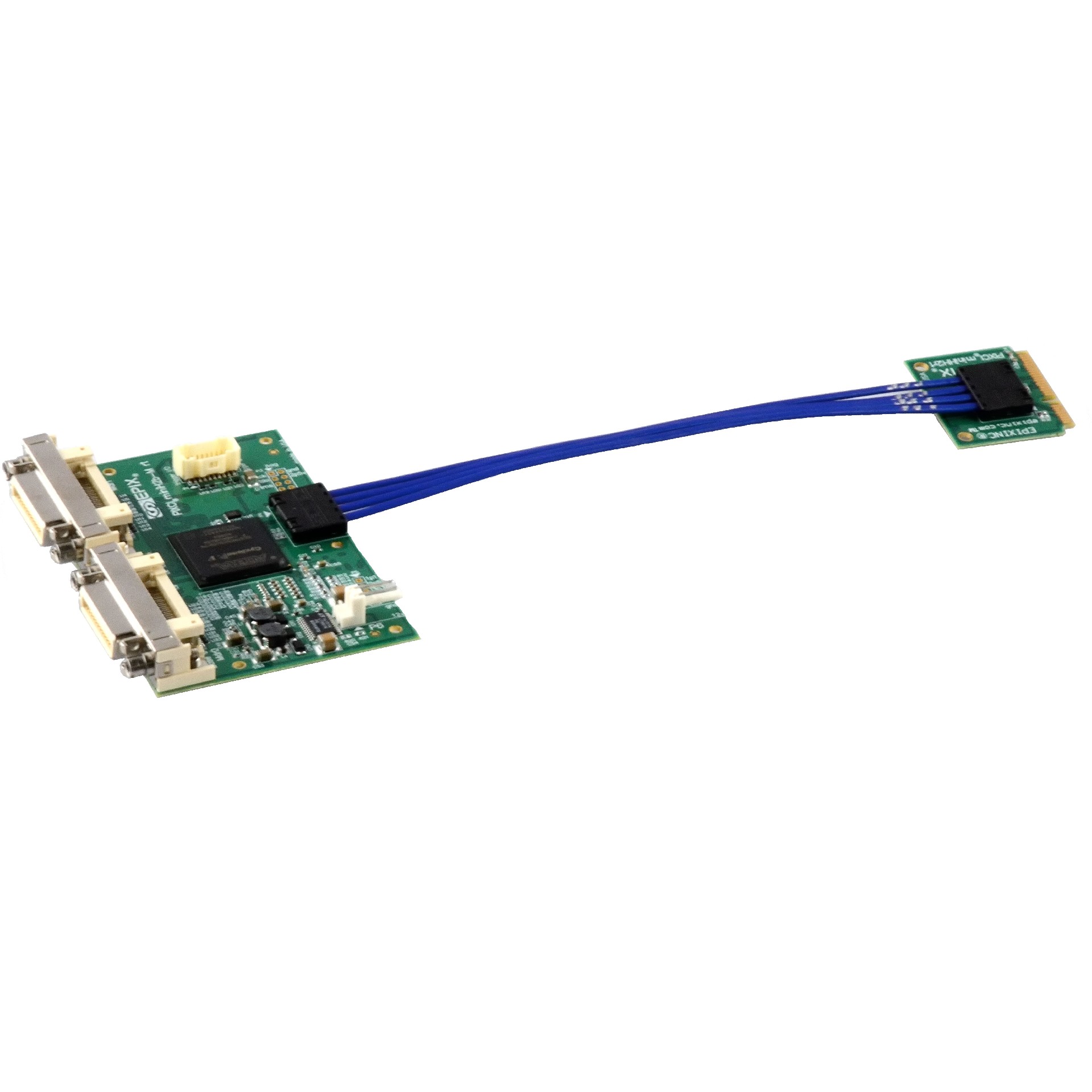

	PIXCI® miniH2B	1 or 2 Base Configuration	mPCIe x1 Gen 2, M.2M, or M.2E	24 bits × 2	Embedded, Dual Base Camera Link
	PIXCI® miniH2F	Base / Medium / Full Configuration	mPCIe x1 Gen 2, M.2M, or M.2E	80 bits	Embedded, Full Camera Link
	PIXCI® miniH2BL	1 or 2 Base Configuration	mPCIe x1 Gen 2, M.2M, or M.2E	24 bits × 2	Embedded, Dual Base Camera Link, Mountable Connectors
	PIXCI® miniH2FL	Base / Medium / Full Configuration	mPCIe x1 Gen 2, M.2M, or M.2E	80 bits	Embedded, Full Camera Link, Mountable Connectors
	PIXCI® EB1miniH	Base Configuration	mPCIe x1, M.2 E, or M.2M	24 bits	Smallest Camera Link Frame Grabber

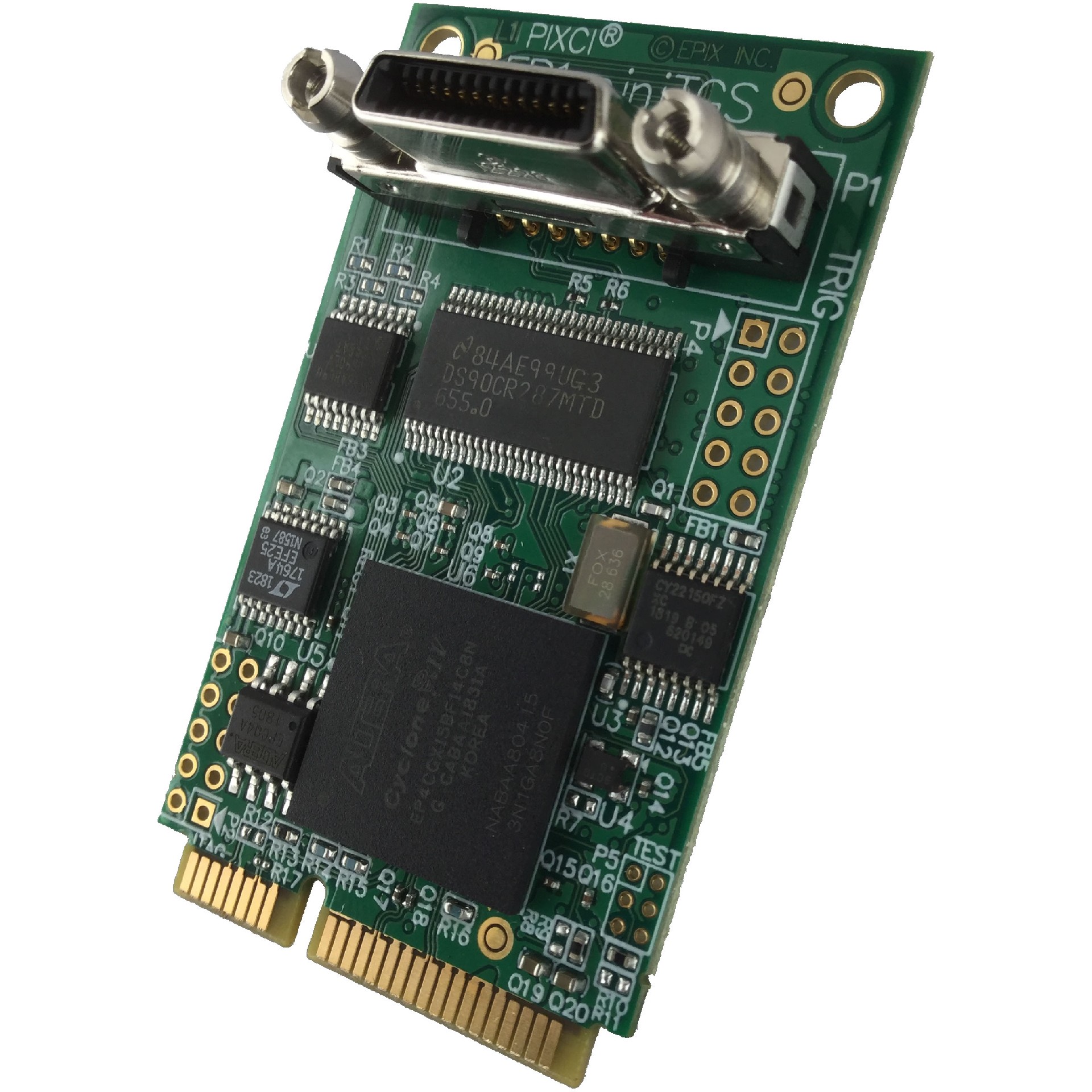

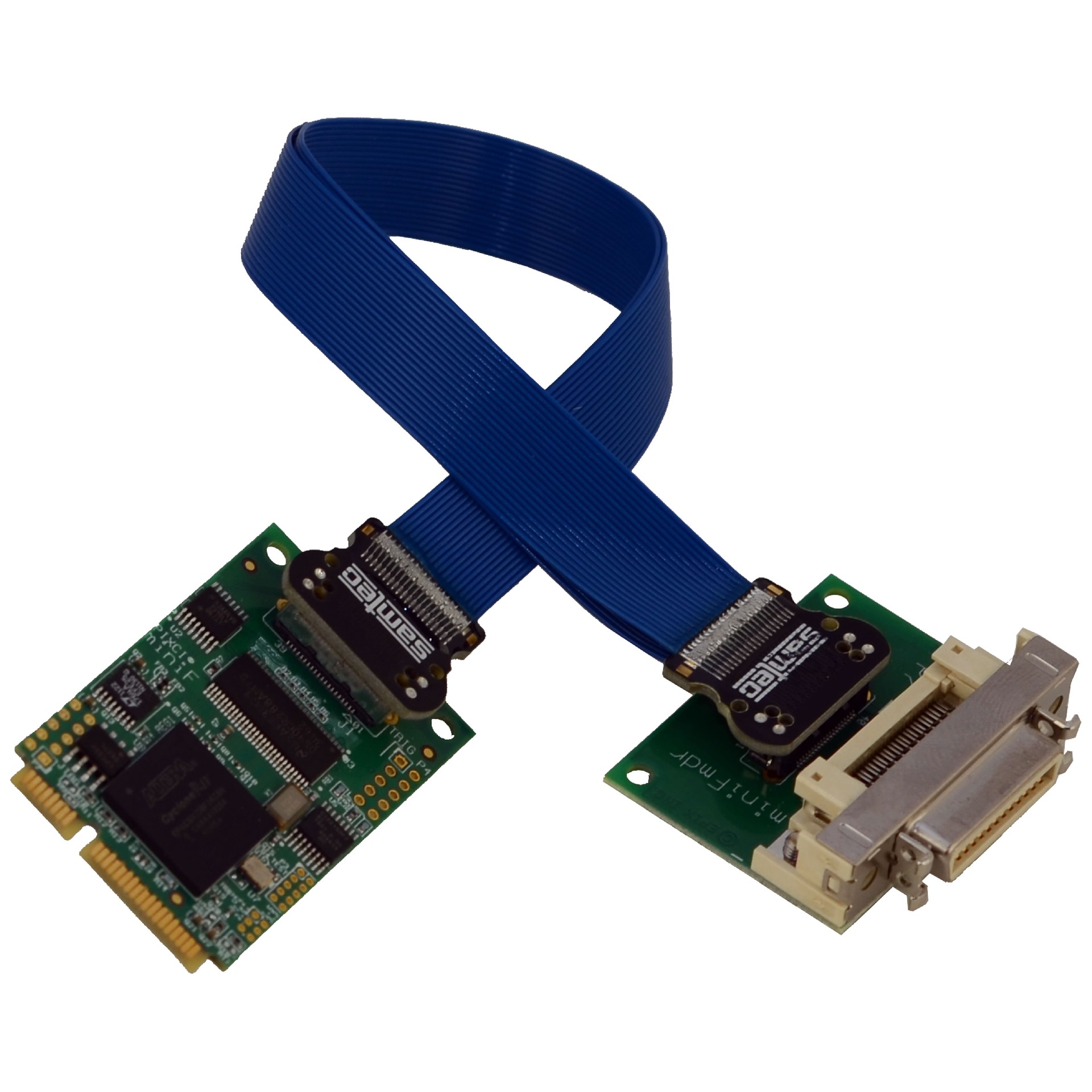

	PIXCI® EB1mini	Base Configuration	mPCIe x1	24 bits	Smallest Camera Link Frame Grabber
	PIXCI® EB1miniF	Base Configuration	mPCIe x1	24 bits	Smallest Camera Link Frame Grabber

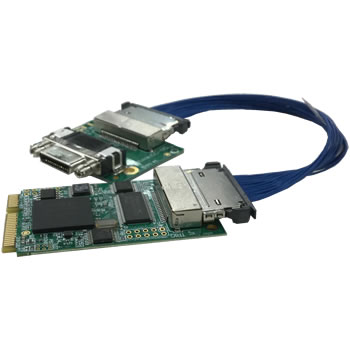

	PIXCI® EB1miniGC	Base Configuration	mPCIe x1	24 bits	Smallest Camera Link Frame Grabber

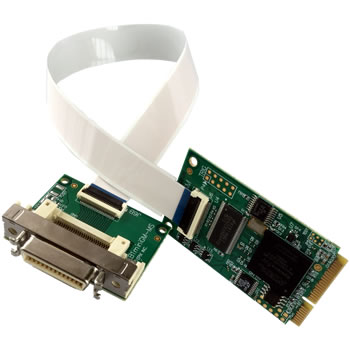

	PIXCI® EB1miniGM	Base Configuration	mPCIe x1	24 bits	Smallest Camera Link Frame Grabber

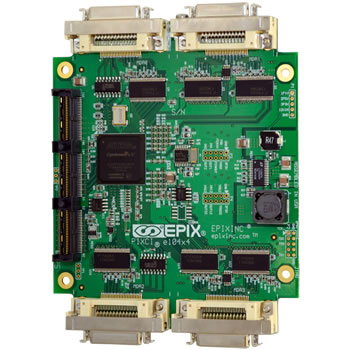

	PIXCI® e104x4	1 or 2 Medium / Full / 10-tap Configuration switchable to 1 to 4 Base Configuration	PCIe/104 x4 2.0	80 bits × 2 or 24 bits × 4	Embedded, 1 or 2 Full, up to 4 Base

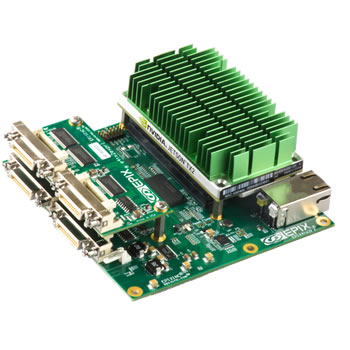

	PIXCI® E4TX2	1 or 2 Medium / Full / 10-tap Configuration switchable to 1 to 4 Base Configuration	Internal PCIe x4 2.0	80 bits × 2 or 24 bits × 4	Embedded, Jetson TX1/TX2 carrier, 1 or 2 Full, up to 4 Base
