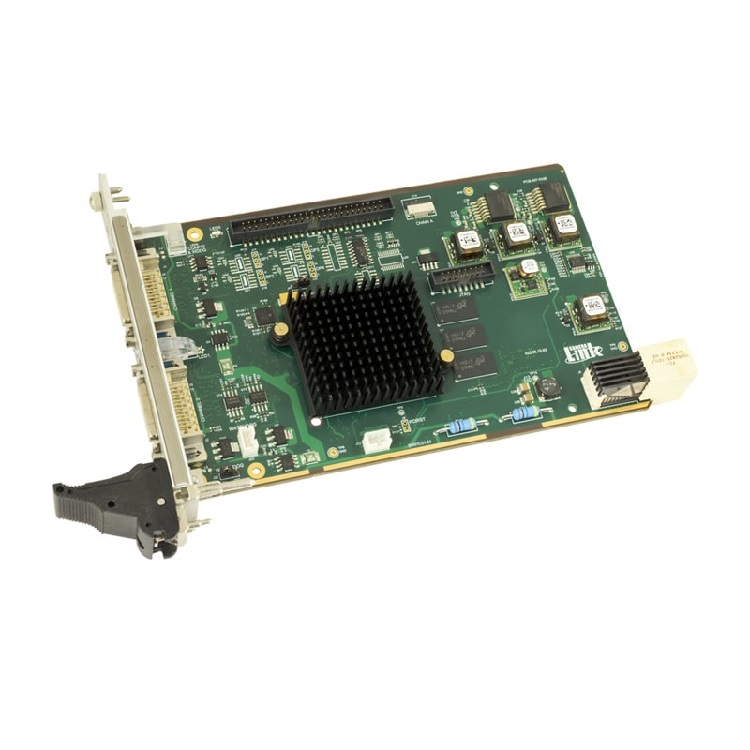

(Camera Link) AS-FBD-1XCLD-3CPCIS-2PE4

Category：Active Silicon
Visits： 91 Clicked
Date：2025-11-28 11:09:33
Download：

Details

Features

Supports the latest v2.1 Camera Link interface.
Comprehensive I/O, supporting standard FireBird I/O adapters.
PCI Express 2.0 (Gen2) 4-lane interface.
Watchdog feature.
Standard Camera Link connectors (MDR).
Supports PoCL (Power over Camera Link).
ActiveDMA guarantees acquisition without CPU usage.
3U CompactPCI Serial form-factor.
Extended temperature operation.
Supported by ActiveSDK.
Supports GenICam for CLProtocol & GenCP cameras.
Includes GenICam GenTL Producer.

Specification summary

Camera Link Interface:	FireBird is fitted with 26‑way Camera Link connectors (MDR) and screwlocks as specified in the Camera Link v2.1 specification. LEDs by each connector show the link status, see Status LEDs for more details. The interface supports the following configurations: Single Base. Dual Base. Single Medium. Single Full. Single 80-bit (Deca).
Camera Clock:	FireBird supports effective clock rates from DC to the Camera Link maximum of 85MHz, using the Camera Link Strobe (STB) and Data Valid (DVAL) signals.
PoCL:	FireBird supports Power over Camera Link (PoCL) functionality and is able to provide power to PoCL enabled cameras via the Camera Link data cable, therefore removing the need for a separate power supply. In addition to this the FireBird implements SafePower, an intelligent sense mechanism which detects the presence of a PoCL camera before applying power to it. This safety mechanism ensures that power is not applied to conventional non-PoCL cameras. FireBird can supply up to 4W at a nominal 12V to a Base mode PoCL camera, or 8W to a Medium/Full/80-bit camera, as required by the Camera Link specification. Both Camera Link connectors support PoCL, which with SafePower allows the use of any combination of PoCL and conventional cameras.
Buffer Memory:	320 Mbytes of DDR3 memory is fitted for buffering between the Camera Link interface and the PCI Express bus.
PCI Express:	PCI Express 2.0 (Gen2) 4-lane interface typically providing 1.7 Gbytes/sec transfer from FireBird to the PC, subject to PC performance.
I/O:	The following I/O lines are provided for triggers, shaft encoders, exposure control and general I/O: 4 opto-isolated inputs. 4 opto-isolated outputs. 4 TTL inputs, 5V tolerant. 4 TTL I/O, 5V logic. 4 RS-422 inputs. 4 RS-422 outputs. All these I/O signals are provided on a 50-way header on the FireBird board.
Watchdog:	FireBird is fitted with a hardware watchdog which monitors communication with the host. If the watchdog register is not written to within a certain period of time (e.g. suggesting the processor or software has failed in some way), an indication will be provided via an LED on the front panel. Whilst it is not possible to reboot / reset the processor across the bus, there is an open collector output that may be used for this type of purpose if required. There is also a jumper that when fitted disables the watchdog feature.
Acquisition Control:	The acquisition trigger control functionality is used to determine which video frames to acquire from the camera. The system can be configured for a single trigger event to acquire all subsequent frames, a trigger event per frame, or continuous acquisition irrespective of the trigger condition. The trigger event is programmable to be level or edge sensing via the control inputs (see the I/O section for more details). When running in linescan mode additional modes are available for interfacing to single output shaft encoders and quadrature encoders. The hardware can also delay the trigger event by a fixed time period or number of lines to allow fine tuning from sensor triggering to image acquisition.
Serial Port:	FireBird has an asynchronous serial port as part of the Camera Link interface which is used to communicate with the camera. In dual Base mode there is an additional serial port to communicate with the second camera. The serial port is controlled via the PHX API and is also accessible as a standard COM port in the host operating system.
Region of Interest:	The Region Of Interest (ROI) feature controls which part of the output image to acquire. In areascan mode, this is a rectangular region with a programmable width, height and x / y offset. Linescan mode is similar, allowing control of the width and x offset, with the height control being used to package the data into pseudo frames for subsequent processing by the user’s application.
Data Mapper:	The image data can be formatted in hardware for ease of subsequent processing. For example, a mono data source can be converted into 32-bit color data for display. Supported output formats include 8-, 10-, 12-, 16- and 32-bit mono, as well as 24-, 32- and 48- bit color in both RGB and BGR ordering.
Status LEDs:	Status LEDs are fitted to provide feedback on the camera connectivity and FireBird activity: Camera connectivity: Camera connected / not connected State of the PoCL function (e.g. camera is powered via PoCL or external power). FireBird activity: FPGA configuration. PCIe access. Watchdog: Watchdog status.

Conformance

PCI Express Interface:

PCI Express 2.0 (Gen2) 4-lane interface to Specification Revision 3.1, with a max payload size of 512 bytes.
FireBird Camera Link CompactPCI Serial supports both Short (32-bit) and Long (64-bit) Address packets. It also generates Posted Writes for image data, thus achieving transfer rates in excess of 1.7 GBytes/sec, subject to host performance. The board requires 16 MBytes of address space.

Camera Link:

FireBird Camera Link CompactPCI Serial conforms to v2.1 of the Camera Link specification.

Approvals:

EU:

CE-mark for compliance with EMC EN 55022:2010 (class A) and EN 55024:2010 in accordance with EU directive 2014/30/EU.
RoHS compliance to RoHS3 directive 2015/863/EU.

USA:

EMC FCC Class A.

The printed circuit board is manufactured by UL recognized manufacturers and has a flammability rating of 94V-0.

Physical and environmental details

Dimensions:	PCB: 160mm by 100mm. Overall: Standard 3U cPCI Serial format.
Weight:	240g.
Power Consumption (typical):	+12V 500mA Up to 4W per Camera Link connector may be supplied to power PoCL cameras. Measured during acquisition from a single 80-bit camera running at 85MHz (not including the power to the camera).
Storage Temperature:	-40°C to +85°C.
Operating Temperature:	-40°C to +85°C (ambient environment).
Relative Humidity:	10% to 90% non-condensing (operating and storage).
